3 Tiers of Puzzle system can accommodate up to three vehicles per one parking space, its installa on height (above ground) is same with 2 Tiers system. This system is safe, reliable, stable running and easily operated. It can be constructed both indoors and outdoors depending on its required usage.

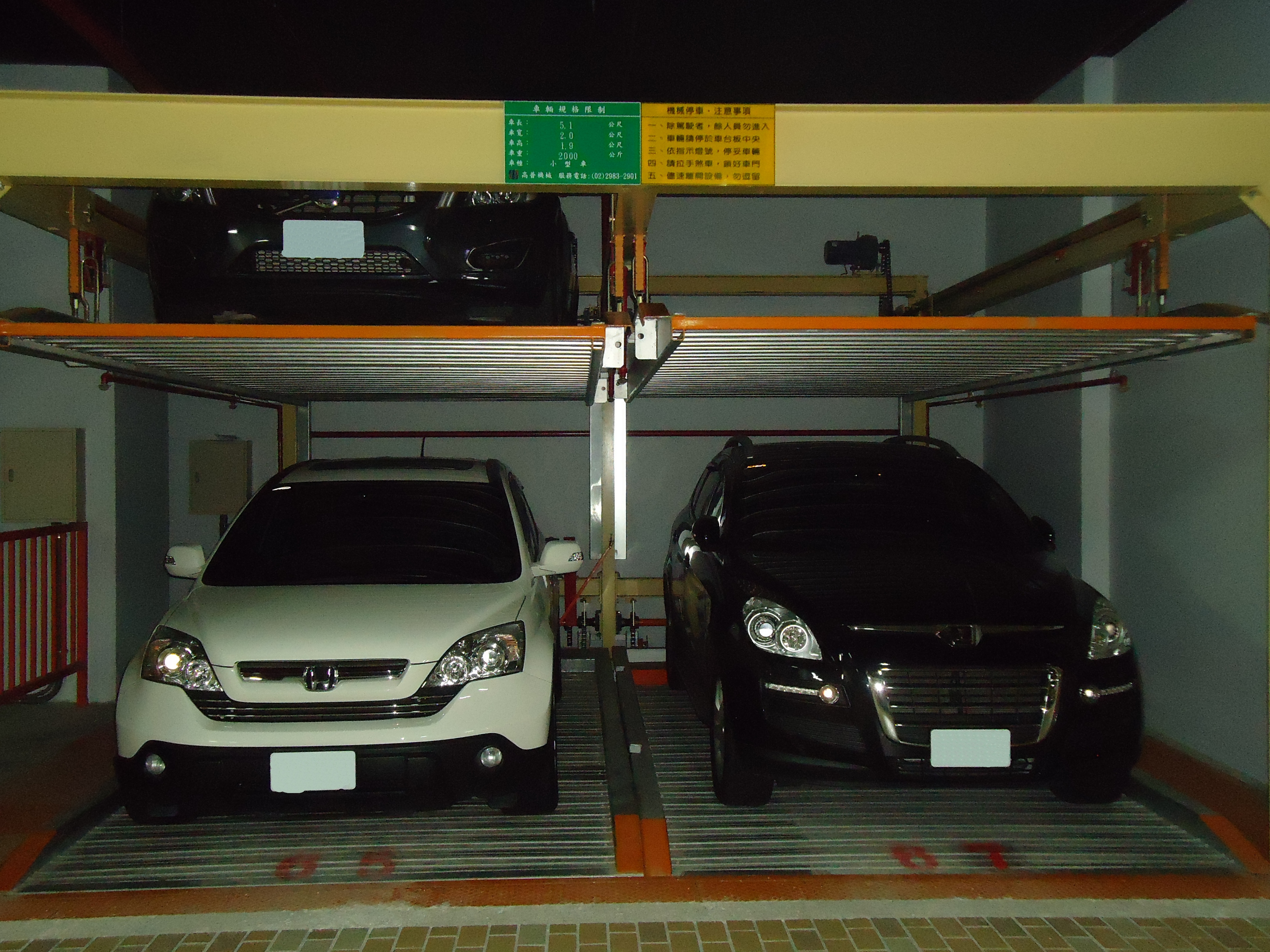

Motor With Chain Type 3 Tiers (KP-Z3)
Front view
Side view
| Standard Spec. for Motor Type with Chain 3-Tiers KP-Z3(mm) | |||
| Car Allowance Dimension | Type | M | L |
| Length | 4600mm | 5100mm | |
| Width | 1900mm | 2000mm | |
| Height | 1500mm | 1500mm | |
| Weight | 1800kg | 2000kg | |
| Actual Size | Length | 5500mm | 6000mm |
| Width | 2400*N+300 | 2500*N+300 | |
| Height | 3600mm | ||
| Pit | 2050mm | ||
