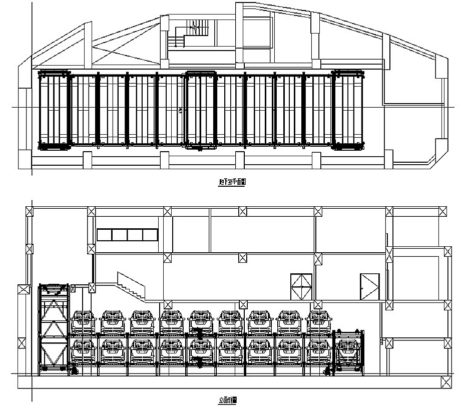

Car platform transmission works by circulation which makes use of lateral shift , lifting and lowering action. This system is suitable for a project site which is both wide and broad.
Car platform transmission works by circulation which makes use of lateral shift , lifting and lowering action. This system is suitable for a project site which is both wide and broad.
Standard Spec. for Box-Circulation Type (mm) | ||
Car Allowance Dimension | Type | KP-HP |
Length | 5200mm | |
Width | 2050mm (Include rear mirror) | |
Height | 1500mm & above(varies) | |
Weight | 2200kg | |
Platform Size | Length | 5400mm |
Width | 2200mm | |
Actual Size | Length | 6550mm |
Width | Based on site | |
Height | Based on site | |
Pit | Based on site |
